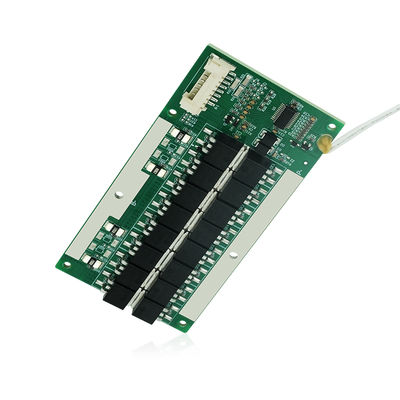

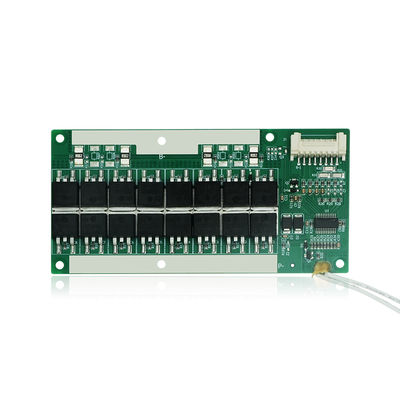

KLS Smart Lithium Battery BMS 16S-24S 60A-200A 144V Li-ion Lifepo4
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 기본 자료 | FR-4 | 구리 두께 | 1oz |
|---|---|---|---|
| 보드 두께 | 1.6mm | 최소 구멍 크기 | 0.20mm |
| 최소 선 너비 | 0.1mm | 최소 라인 간격 | 0.1mm |
| 표면 마감 | Hasl 리드 무료 | 보드 크기 | Hasl 리드 무료 |
| 재료 | FR4 /aluminum/ceramic CEM1 | 전압 | 24V/36V/48V/60V/72V |
| 모델 | KLSKF-069 | 일반적인 버전 | 충전/배출을위한 공통 포트 |
| 범위를 사용자 정의하십시오 | 3S-32S 리튬 배터리 | 통신 방식 | BT/RS485/RS232S/CAN |
| 병렬 연결 | 15 개의 배터리 팩 | ||
| 강조하다 | 16S-24S lithium battery BMS,60A-200A Li-ion BMS,144V Lifepo4 battery management system |
||
제품 설명
KLS Smart Lithium Battery BMS
High-performance Battery Management System for 16S-24S Li-ion, LiFePO4, and LTO batteries with 60A-200A current capacity and 144V high voltage support.
Product Specifications
| Attribute | Value |
|---|---|
| Base Material | FR-4 |
| Copper Thickness | 1oz |
| Board Thickness | 1.6mm |
| Min. Hole Size | 0.20mm |
| Min. Line Width | 0.1mm |
| Min. Line Spacing | 0.1mm |
| Surface Finishing | HASL Lead Free |
| Voltage Options | 24V/36V/48V/60V/72V |
| Certifications | ISO9001/Iso14001/CE/ROHS |
| MOQ | 1 PCS |
| Packaging | Antistatic Bag/Vacuum Package |
Key Features
- Compatible with various lithium battery types (Li-ion, LiFePO4, LTO)
- Comprehensive protection functions for charging and discharging
- SOC/SOH automatic learning with 400+ historical data storage
- Multiple communication options: RS485/RS232/BT/CAN
- Supports parallel connection of up to 15 battery packs
- Compatible with mainstream inverters (PYLONTECH, GOODVE, Growatt, Victron)
- Mobile APP/color touch screen/computer interface support
- Fast intelligent pre-charging capability
Technical Parameters
Model: KLSKF-069
Version: Common port for charge/discharge
Customization: Available for 3S-32S lithium batteries with different currents
Delivery Time: 1-7 working days
Packaging: Bubble bag/box
Version: Common port for charge/discharge
Customization: Available for 3S-32S lithium batteries with different currents
Delivery Time: 1-7 working days
Packaging: Bubble bag/box
Applications
Designed for energy storage battery packs, the KLSKF-069 BMS excels in home-energy storage applications with its high reliability and cost-effective performance. Features multiple communication methods (BT/RS485/RS232S/CAN) for intelligent battery management through computer or mobile interfaces.
Product Images
About KLS
Shenzhen Kinglisheng New Energy Technology Co., Limited (KLS) was established in 2014 in Shenzhen, China. We specialize in custom PCB assemblies with full PCBA design and production capabilities, offering both surface-mount and through-hole technology solutions.
Our skilled technicians and engineers can design and produce PCB assemblies to your exact specifications, with turnkey solutions available for complete material procurement and production management.
Certifications
Packaging
Frequently Asked Questions
Why choose KLS?
Efficient after-sales service with 13+ years technical support. Products certified to FCC, CE, ROHS, ISO standards. Competitive factory pricing with controllable delivery times.
What is your product range?
We specialize in battery management systems for power batteries, energy storage batteries, and consumer batteries, primarily for LFP and NCM battery types.
What is your MOQ and lead time?
Minimum order quantity is 1 piece. We offer ODM customization with 1-3 days delivery for existing samples, 3-15 days for customized samples and batch production.
How do you ensure quality?
Strict inspection procedures from raw materials to shipment, full product inspection, international standard certifications (FCC, CE, ROHS, ISO), and 2-year after-sales warranty service.
Contact Information
For BMS selection assistance or inquiries, please contact:
Email: sales5@klspcba.com
WhatsApp/WeChat available
Email: sales5@klspcba.com
WhatsApp/WeChat available
