Custom LiFePO4 BMS 3S-24S 20A-60A with Bluetooth and Temp Sensor
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Base Material | FR-4 | Copper Thickness | 0.5-4oz/1oz /2oz or custom |
|---|---|---|---|
| Board Thickness | 0.2-6mm | Min. Hole Size | T/2mm/0.2mm/0.15mm or Custom |
| Min. Line Width | 0.15mm/0.11mm or Custom | Min. Line Spacing | 0.15mm/0.11mm or Custom |
| Surface Finishing | HASL Lead Free | Number of Strings | 1-24S Custom |
| Voltage | 36V/48V/60V Custom | Applicable Battery | LiFePO4,Li-ion 18650 Bluetooth |
| Balance Function | yes | Temp Sensor | yes |
| BT Function | yes | Size | 44.5*31mm |
| Customize Current | 10A-200A | ||
| 강조하다 | Custom LiFePO4 BMS with Bluetooth,3S-24S BMS with temp sensor,20A-60A LiFePO4 battery management system |
||
제품 설명
KLS 12V-72V LiFePO4 BMS 3S-24S Battery Management System
Product Specifications
| Attribute | Value |
|---|---|
| Base Material | FR-4 |
| Copper Thickness | 0.5-4oz/1oz /2oz or custom |
| Board Thickness | 0.2-6mm |
| Min. Hole Size | T/2mm/0.2mm/0.15mm or Custom |
| Min. Line Width | 0.15mm/0.11mm or Custom |
| Min. Line Spacing | 0.15mm/0.11mm or Custom |
| Surface Finishing | HASL Lead Free |
| Board Size | Custom |
| Number of Strings | 1-24S Custom |
| Voltage | 36V/48V/60V Custom |
| Applicable Battery | LiFePO4, Li-ion 18650 Bluetooth |
| Application Field | Laptop batteries, power tools, etc. |
| Certifications | CE, FCC, ISO, ROHS, EPR |

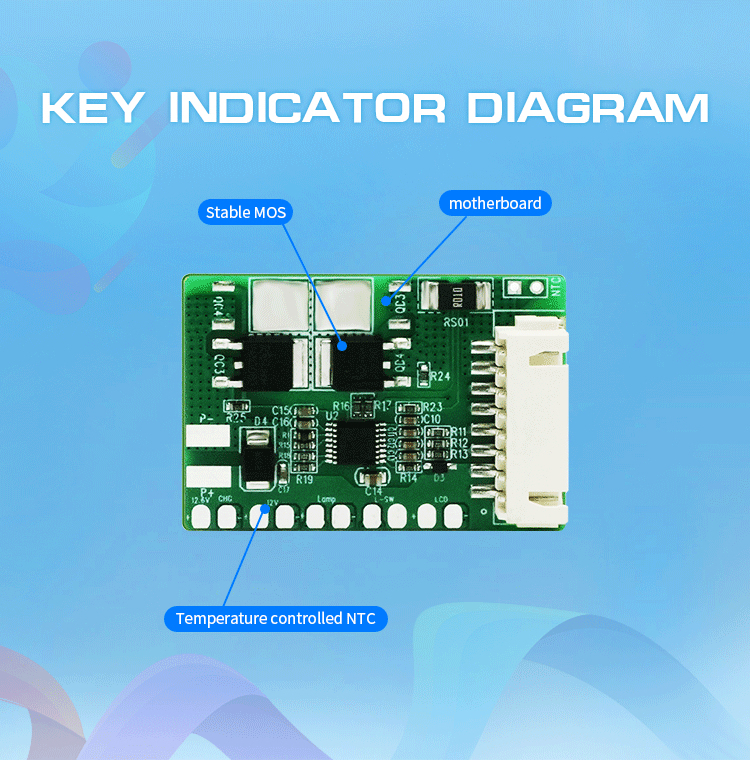

Key Features
- Customizable current range from 10A to 200A
- Supports 3S-24S lithium battery configurations
- Built-in balance function for cell equalization
- Temperature sensor for thermal protection
- Bluetooth functionality for monitoring
- Available in common port (charge/discharge) version
- Minimum order quantity: 1 piece
Product Images
Frequently Asked Questions
Q1: What certifications do your BMS/protection boards hold for global compliance?
A: Our products comply with CE, RoHS, and UL standards. Custom certifications are available for OEM/ODM projects. Full documentation ensures seamless market entry.
Q2: Can you customize BMS parameters for LiFePO4, NMC, or other battery types?
A: Yes. Provide voltage range (e.g., 12V-72V), cell configuration, discharge current (up to 300A), and communication needs (CAN/RS485/Bluetooth...) for tailored solutions.
Q3: How does your BMS prevent critical failures like overcharge or short circuits?
A: Multi-layer protection includes:
- ±25mV voltage balancing accuracy
- Ultra-low impedance MOSFETs for precise current control
- Real-time temperature monitoring via NTC sensors
- SOC/SOH tracking with industrial-grade ICs
Q4: What is your minimum order quantity and lead time?
A: Standard MOQ: 1 unit (3-7 days). Bulk orders (10,000+ units) qualify for 10-day expedited production and volume discounts.
Q5: Do you offer waterproof BMS for EVs or marine applications?
A: Yes. Feature wide-temperature operation (-40°C to +85°C), vibration resistance, and automotive-grade connectors. Custom sealing options available.
